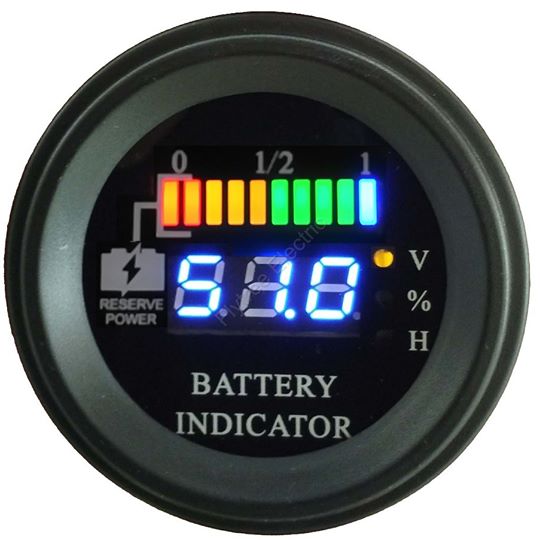

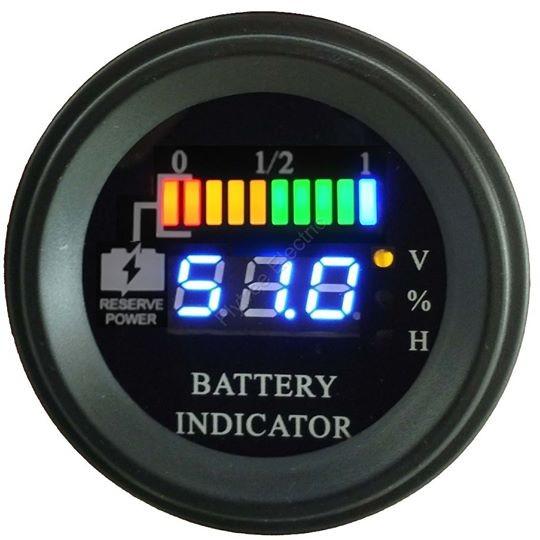

Dual LED lines Battery Indicator - battery gauge with dual LED line screen showing battery charge status graph,voltage or power volume percent or use-time counting hour. It suits for lead acid battery, SAL battery and li-on battery in electric vehicle, boat, sweeper and forklift.

Video on the battery inidicator on the electric mower:

https://youtu.be/TnfF5plCeN0

Display content:

Battery’s remaining power volume LED bar with four colors(blue, green, yellow, red)

Battery’s voltage (V)

Battery’s charging percent (%)

use-time counting (H)

1.Operating voltage: 5-100V
2.Operating current: 10-16mA
3.Display: 10 LED Bar + 3 digital number (1blue,4 green.3 yellow.2 red LEDs)
4.Connector: 4.8x0.8mm connector
5.Dimension: housing case 60mm, cutout 50-52mm, U clamp:62x25x10mm

Size:

Wire connection:
